Steel Rail

  • Steel Rail
  • Steel Rail
  • Steel Rail
  • Steel Rail
  • Steel Rail

Steel Rail
Steel rail, also known as railroad track or railway track, is a vital component of railway infrastructure that supports and guides railway vehicles, such as trains, trams, and subway cars. Steel rail provides a smooth, stable surface for trains to travel on, ensuring safe and efficient transportation of passengers and freight.
WhatsApp：+8618765818537
Email：michael@jinzhemetal.com
Contact Us

Product Specifications

StandardSepc.Material   Typical Grade
UIC860UIC54700,900A,900B
UIC60
EN13674.150E1
R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT
54E1
60E1
60E2
BS-11-1985BS80A700,900A,900B
BS90A
BS100A
AREMA115RESS,HH,LA,IH
136RE
ASCE60U71Mn
ASCE85U71Mn
GB   2585-200750kg/mU71Mn
60kg/mU75V
75kg/m
TB/T2344-201250kg/mU71Mn,U75V,U77MnCr
60kg/mU78CrV
75kg/m
GB   11264-19898kg/mQ235
12kg/mQ235
15kg/m55Q, Q235
18kg/m55Q, Q235
22kg/m55Q, Q235
24kg/m55Q, Q235
30kg/m55Q, Q235
38kg/m50Mn, U71Mn
43kg/m50Mn, U71Mn
GB   Crane railsQU70U71Mn
QU80U71Mn
QU100U71Mn
QU120U71Mn


Standard: ASTMA1, AREMA
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
ASCE 2538.169.8569.857.5412.47006-12
ASCE 3042.8679.3879.388.3314.887006-12
ASCE 4047.6288.988.99.9219.847006-12
ASCE 6060.32107.95107.9512.329.767006-12
ASCE 7562.71122.24122.2413.4937.2900A/110012-25
ASCE 8565.09131.76131.7614.2942.17900A/110012-25
90RA65.09142.88130.1814.2944.65900A/110012-25
115RE69.06168.28139.715.8856.9900A/110012-25
136RE74.61185.74152.417.4667.41900A/110012-25
175LBs109.86152.4152.438.186.8900A/110012-25
Standard: BS11: 1985
SizeDimension(mm)WeightMaterialLength (m)
Head(mm)Height(mm)Bottom(mm)Web(mm)(kg/m)
50 O52.39100.01100.0110.3224.8337006-18
60 A57.15114.3109.5411.1130.618900A6-18
75 A61.91128.59114.312.737.455900A8-25
75 R61.91128.59122.2413.137.041900A8-25
80 A63.5133.35117.4713.139.761900A8-25
80 R63.5133.3512713.4939.674900A8-25
90 A66.67142.8812713.8945.099900A8-25
100 A69.85152.4133.3515.0850.182900A8-25
113 A69.85158.75139.72056.398900A8-25
Australian Standard Railway
standard:AS1085
SizeDimensionWeight (kg/m)Length Material
Head(mm)Height(mm)Bottom(mm)Web(mm)(m)
31KG63.5117.510811.531.58-15900A/1100
47KG70141.312714.346.5
50KG701541271550.8
60KG7017014616.561
68KG73.418615217.567.6
73KG701571463273.63
86KG10210215584.1185.5
89KG1021141785189.81

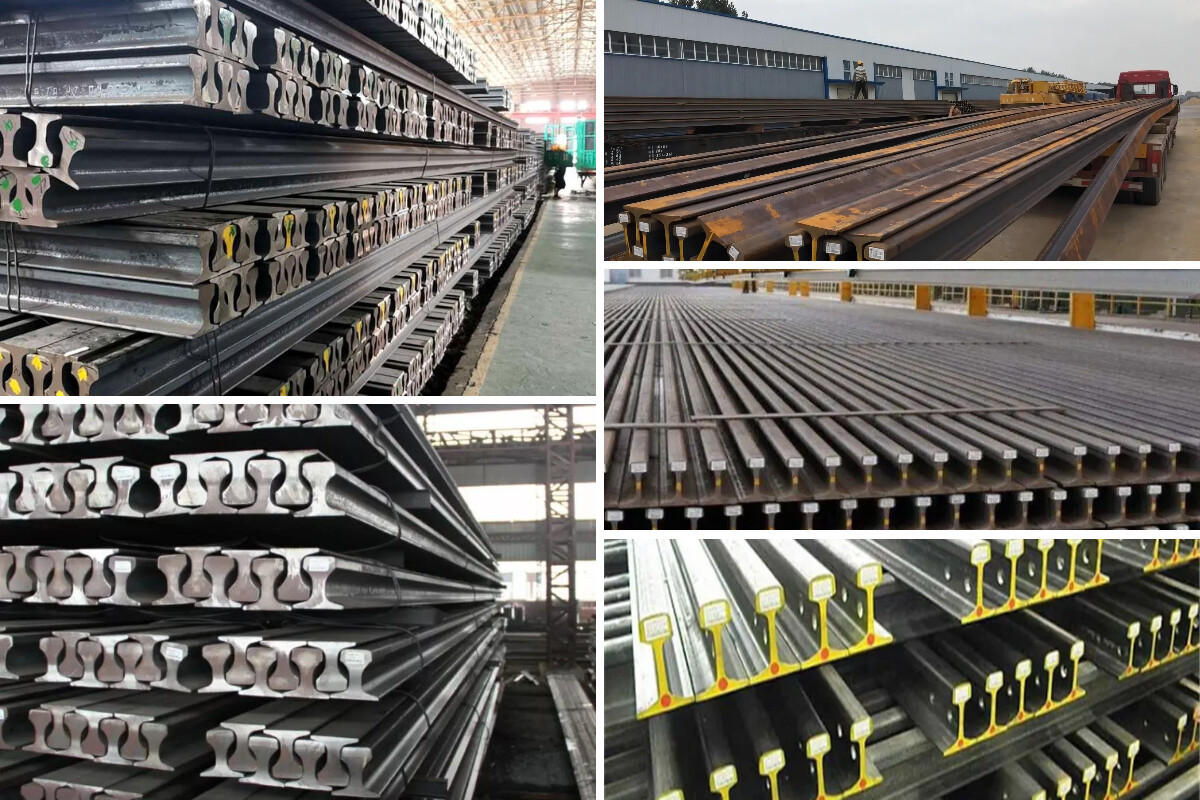

Product Display

steel rail.jpg

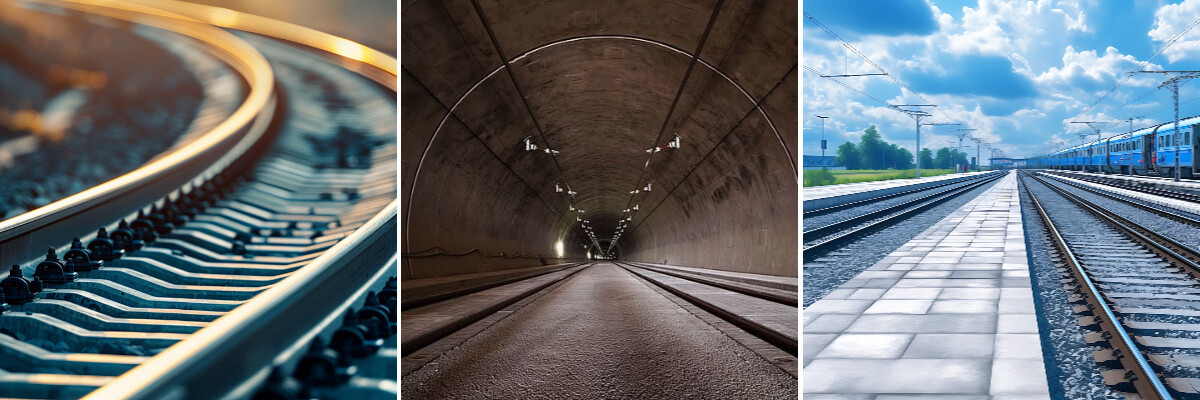

Product Application

下载 (11).jpg

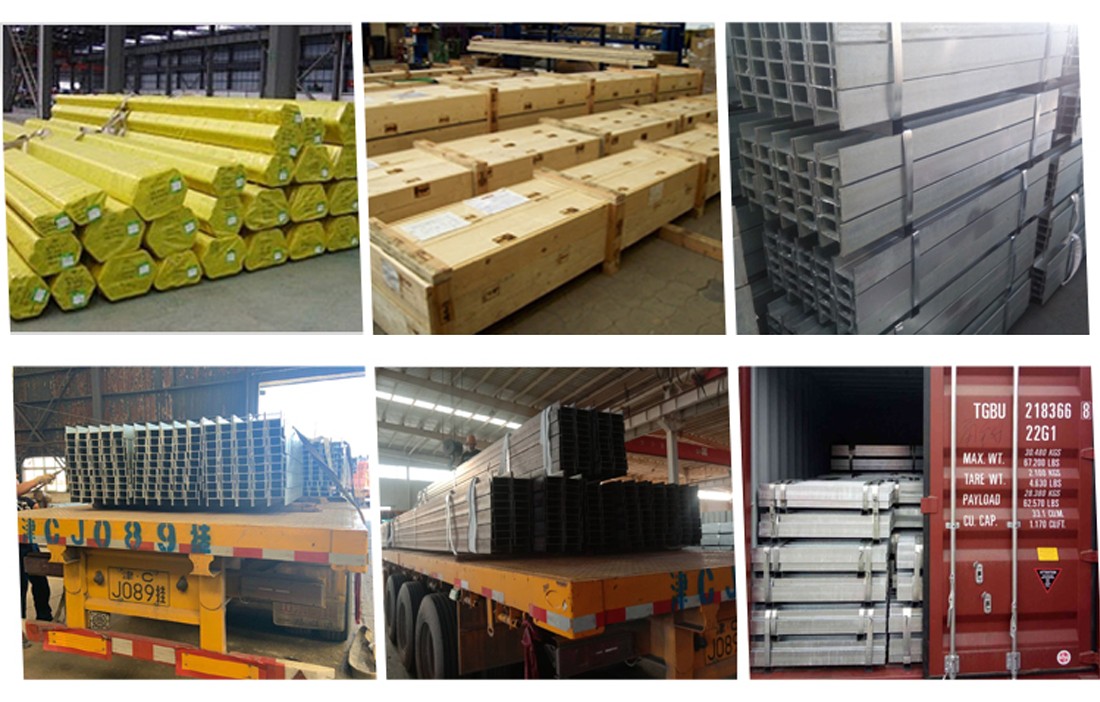

Packaging and shipping


Factory Display

  • a635e6aa8af749b3b20947091f812fdd
  • 011177a38e499b8b50e0993f29e85558
  • 60a465fb6d089d1e3a0c90958431d3c3
  • 未标题-2
  • 摄图网_600975422_钢铁仓库(非企业商用)-(1)
  • vecteezy_modern-industrial-steel-manufacturing-facility-with-advanced_49740735
  • 0b42940c953e9e845fc286c7d6151ed6
  • a8c2ec4a3945a90482a70e6aabff013f
  • 25a2288e2c3f5a265b436ee9de2c6480
  • bf4177c383f74c00f80e0bca1aae52a7
  • 工厂车间 (4)
  • 5
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝
  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp
  • 76e854f676be41a74b86935d2042824d

FAQ

1.What kind of customer service do you provide?

We provide comprehensive customer service, including basic design, procurement of supporting facilities, and options for dispatching installation guides.



2.What are the customer evaluations of your company?

We are proud to consistently receive five-star reviews from our customers, which demonstrates our commitment to quality and service.



3.What is your quality inspection process like?

Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished products, every stage is carefully inspected to ensure excellent quality.



4.Do you accept container loading inspection?

Welcome to dispatch inspectors, not only for container loading, but also at any time during production.





5.What is the delivery time?

The delivery time depends on the quantity of orders. Usually, the delivery time to the nearest port in China is 15-30 days after receiving the deposit.



6. How to obtain a project quotation?

You can contact us 24 * 7 via email, phone, WhatsApp, WeChat, etc. You will receive a reply within 4 hours.
